Description
- SELECTED MATERIALS: The skateboard motor wheels are made of high-quality PU wheels, iron and aluminium alloy, which are durable and do not need to be replaced frequently. With high quality materials and 4-wheel structure, the maximum load capacity is up to 220.46 lbs, allowing you to skateboard to your heart's content! The 250-watt brushless motor with 2200rpm and low noise level of around 55dB ensures high efficiency (over 80%), allowing you to enjoy skateboarding to your heart's content.
- SPEED AND PASSION: With a top speed of 15.525mph, a maximum climbing angle of 20 and a range of up to 14.3 miles, you can enjoy the speed and passion of skateboarding! The 250-watt brushless motor with 2200rpm and low noise level of around 55dB ensures high efficiency (over 80%) for your skateboarding pleasure.
- HIGH SAFETY: The skateboard motor's IP44 waterproof rating and Class E insulation allow for use in rainy weather for added safety.
- EASY TO CLEAN: Simple construction and smooth surfaces allow the surface to be wiped down with a towel when dust accumulates. The rounded, burr-free edges are not only more comfortable to the touch, but also to your skin.
- EASY INSTALLATION: All parts of the skateboard motor are already assembled, just plug the connecting cable into the skateboard jack and you are ready to use! Good connectors make it easy to plug and unplug the skateboard.
Specifications
Color: Red
Material: PU, Iron, and Aluminum Alloy
Mount Type: Skateboard-mounted
Number of Pieces: 2
Rated Voltage: 36VDC
Rated Current: 9A
Rated Power: 250W
Rated Torque: > 1.5N.m
Efficiency: 80%
Maximum Torque: 4.5N.m
Test Conditions:
Number of Motor Poles: 10 Pairs of Poles
Ambient Condition: 2010C/6850F, 65%5%
Operating Environment: -10C-35C/14-95F
No-load Current: 1.2A
No-load Speed: 2200RPM 5%
Waterproof Grade: IP44
Insulation Class: E
Motor Hall: SF41/Optional
No-load Noise: 55db
Brake: Electronic Brake/Electromagnetic Brake
Maximum Load Capacity: 100kg/220.46lbs
Maximum Speed: 25km/h/15.525mph
Endurance: 15/23km, 9.32/14.3miles
Battery: 36V, 4.4Ah/6.6Ah/7.8AH(Not Included)
Charging Time: 2~4 hours
Charging Voltage: AC 110-240V, 50-60Hz
Maximum Climbing Angle: 20
Gross Weight: 4.5kg/9.92lbs
Adapted Skateboard Length: Within 90cm/35.43in
Front Wheel Width: 5.5cm/2.17in
Front Wheel Linkage Length: 17.78cm/7in
Overall Length of Front Wheel: 27.43cm/10.8inch
Rear Wheel Width: 6cm/2.36in
Rear Wheel Linkage Length: 12.7cm/5inch
Rear Wheel Overall Length: 29.21cm/11.5inch
Wheel Diameter: 9cm/3.54inch
Package Size: 32.5*12.5*10.5cm/12.8*4.92*4.13inch
Package Included

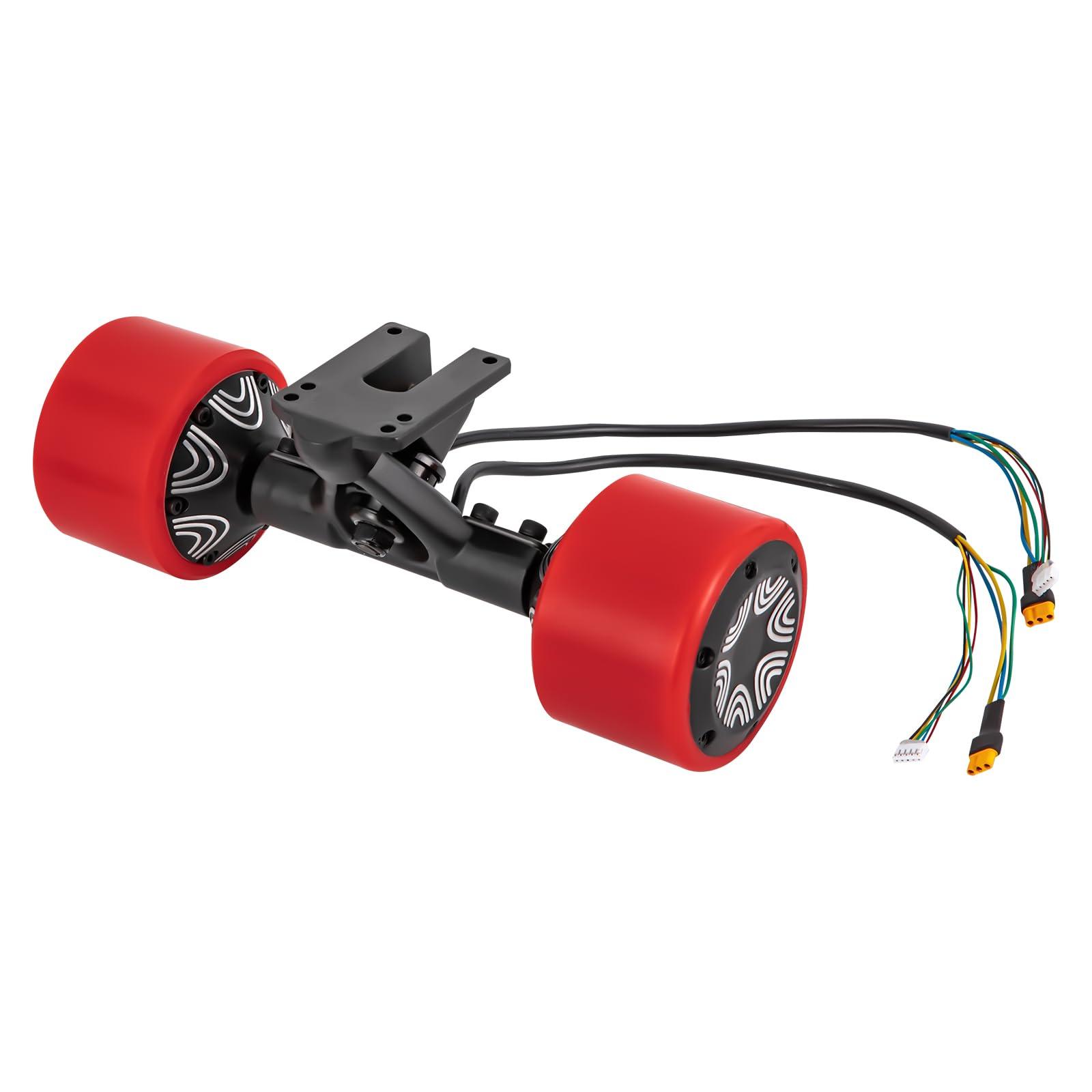

2* Drive Scooter Hub Motors
