Description

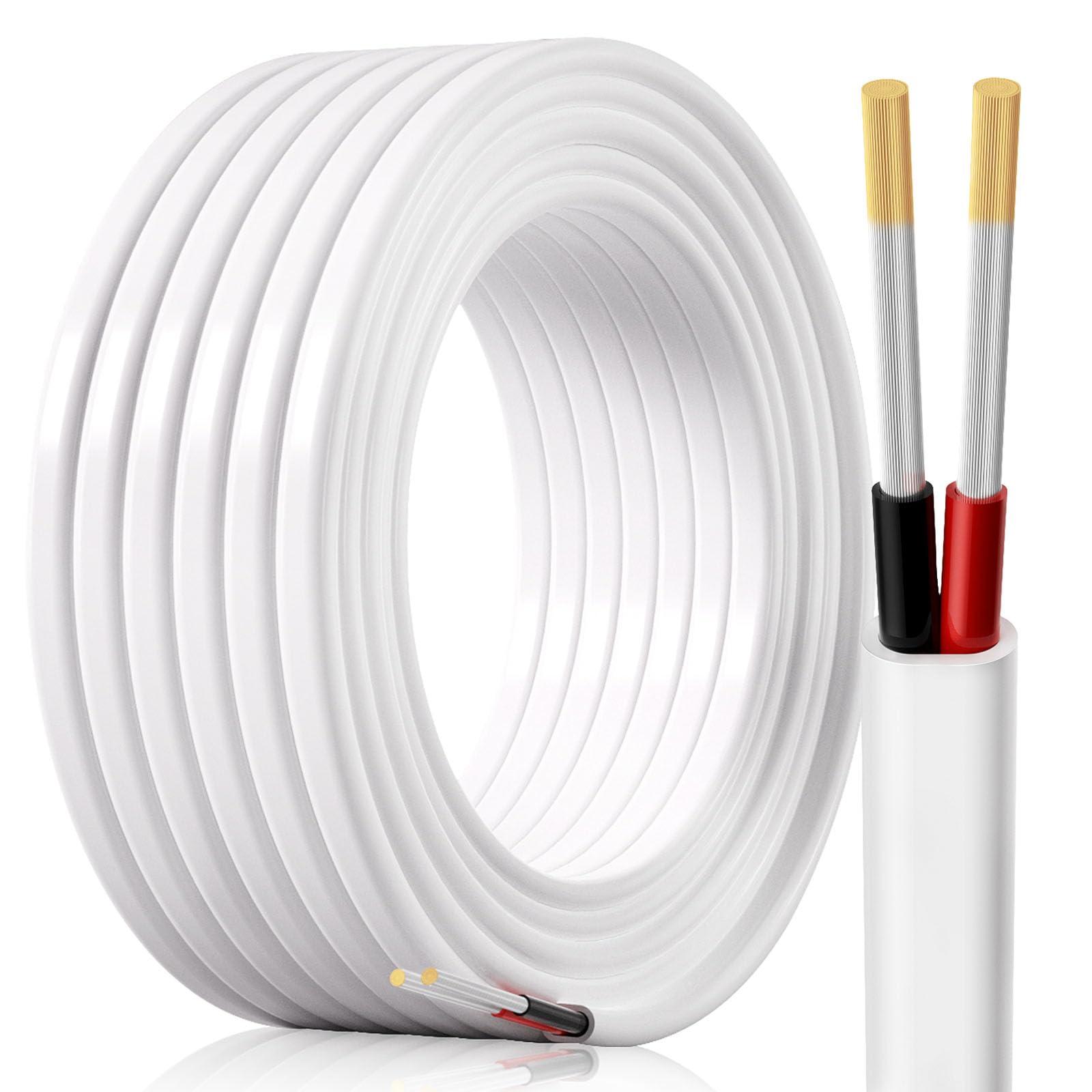

- SPECTIONThe cable is made of #12 AWG Gauge Tinned Copper Marine Wires, 2 of them (black, red) in a white flat, white overall jacket. This marine-grade premium boat cable is designed for reliability, outstanding performance, and maximum corrosion protection in harsh marine environments. Tinned for maximum protection against corrosion and electrolysis.
- FEATUREFlat Duplex wire. Red, Black, with White cover. Double Insulated (each wire + 2 conductors outer insulation) to protect the wire and keep it from building corrosion. Flat profile designed without fillers for easier jacket removal and wire stripping.
- MEETED STANDARDSFlat cover can be used to label circuits, rated for 600V, 105C dry and 75C wet. Because this cable is rated for 75C (167F), It meets ALL THE CODES and regulations of USCG and ABYC standards, which required to be run through engine rooms. Meeting CSA Certified, RoHS Compliant.
- MEETED STANDARDSFlat cover can be used to label circuits, rated for 600V, 105C dry and 75C wet. Because this cable is rated for 75C (167F), It meets ALL THE CODES and regulations of USCG and ABYC standards, which required to be run through engine rooms. Meeting CSA Certified, RoHS Compliant.
- HOW TO SELECT WIREThese duplex wires are available in 12 AWG to meet the demands of a variety of circuits. See our Marine Wire Size and Ampacity chart in this listing, to select the right wire for your job. Due to the wide spread useof inverters, power generators and shorepower connections, we recommends that yellow wire as DC negative because blackis the standard color for AC hot.
